Precision engineering
across the full process chain.
From first-off prototypes to high-volume production, we offer milling, turning, grinding, assembly, finishing and part-marking under one roof.

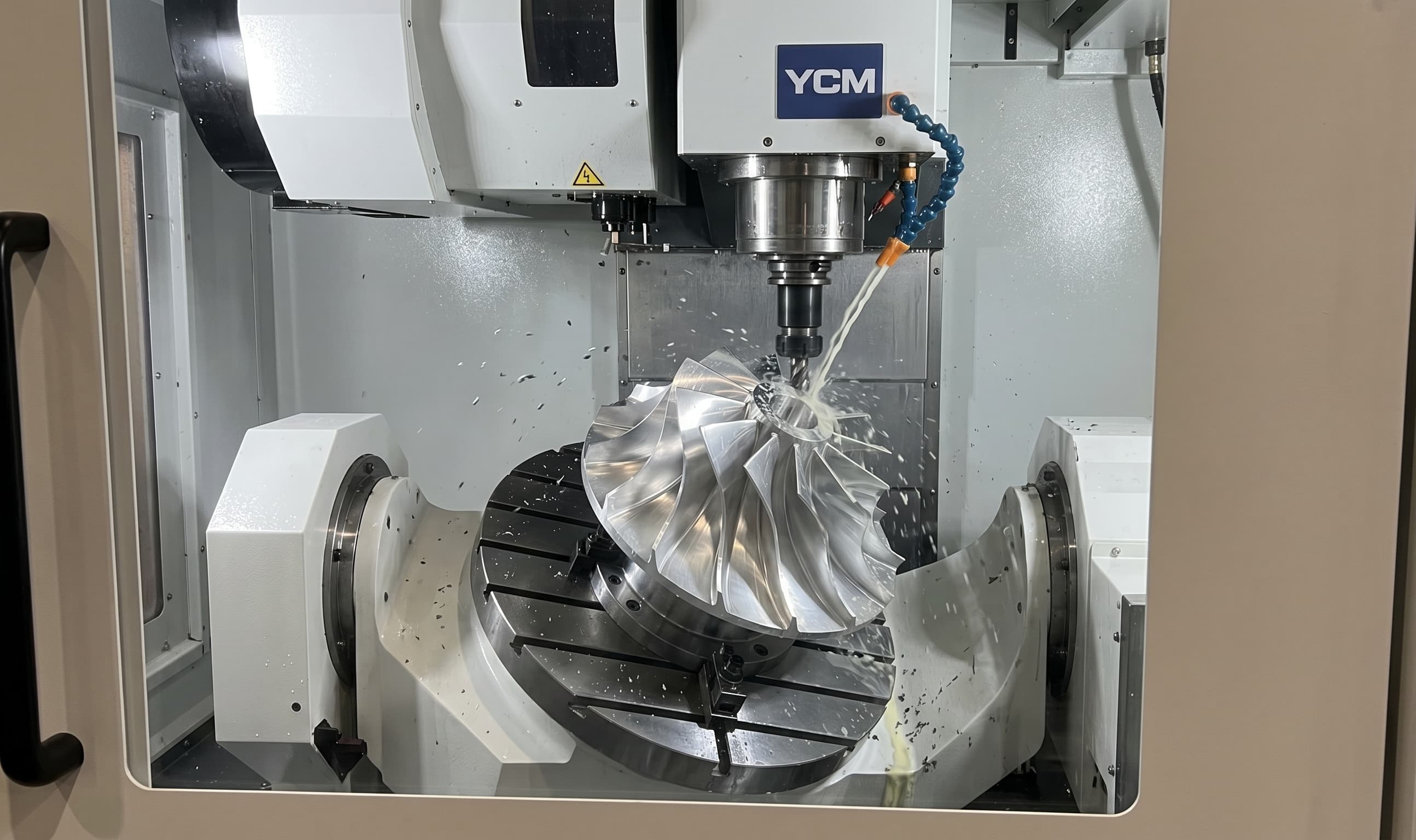

CNC Milling
3-axis to 5-axis simultaneous milling for complex prismatic and contoured geometries. We hold tolerances other shops push back on.
- Axes
- 3-axis, 4-axis, 5-axis simultaneous
- Capacity
- Up to 800 × 600 × 500 mm
- Materials
- Steel, aluminium, titanium, Inconel, plastics
- Tolerance
- ±0.02 mm routinely achieved
CNC Turning
Swiss-type sliding head to large-diameter chucking with live tooling, Y-axis and sub-spindle for complete parts in a single set-up.
- Bar capacity
- Up to Ø32 mm (Swiss); Ø290 mm (chucking)
- Turned length
- Up to 580 mm
- Materials
- Free-cutting steels, stainless, brass, aluminium, engineering plastics
- Live tooling
- Milled features, drilled cross-holes, thread milling

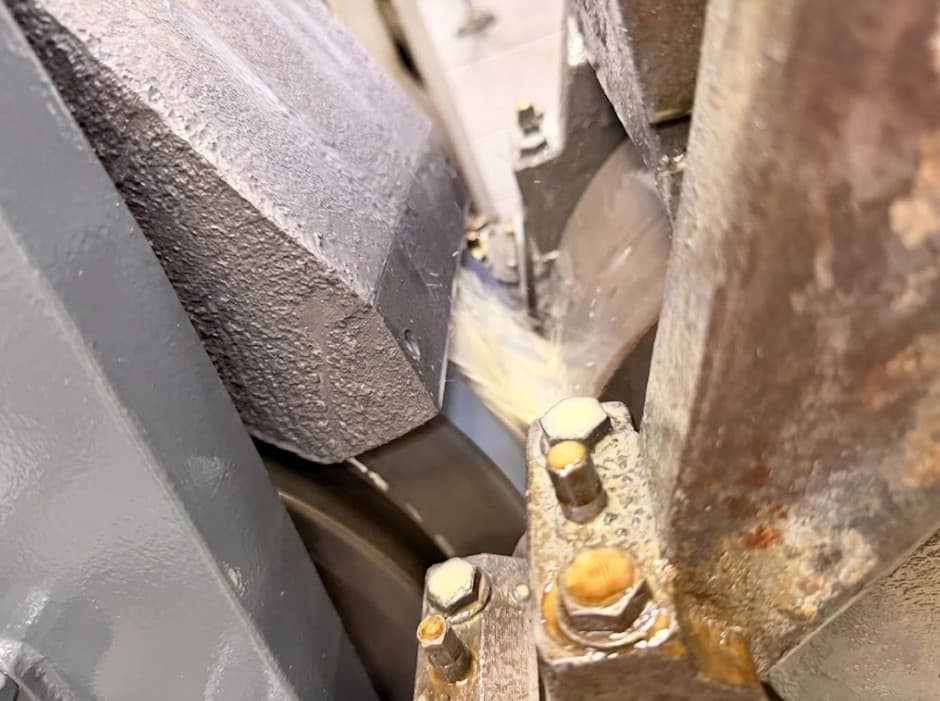

Grinding
Surface and cylindrical grinding for tight geometric tolerances on hardened and ground materials. Finishes to Ra 0.4 µm.
- Types
- Surface · Cylindrical
- Capacity
- 200 × 100 mm (surface); Ø25 mm (cylindrical)
- Finish
- Ra 0.4 µm achievable
- Hardness
- Fully hardened materials

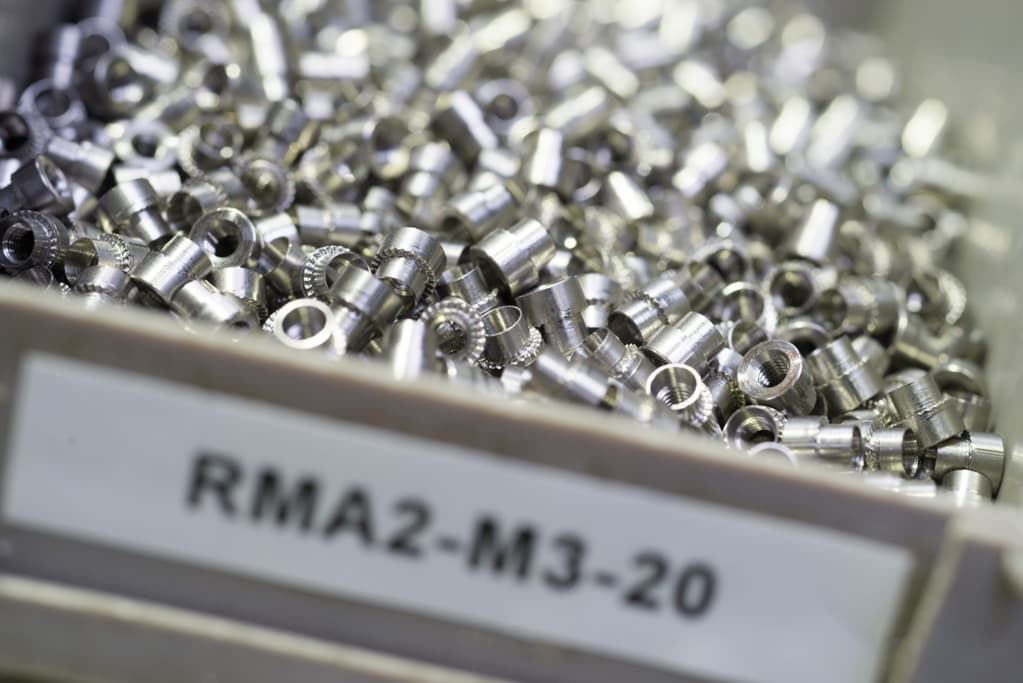

Assembly
Sub-assembly and light mechanical assembly. Fit, press and torque operations with full traceability back to batch records and certificates.
- Operations
- Fit · Press · Torque · Adhesive bonding
- Traceability
- Full batch and material traceability
- Scope
- Component sub-assemblies, kitting
- Documentation
- Assembly records, test certificates

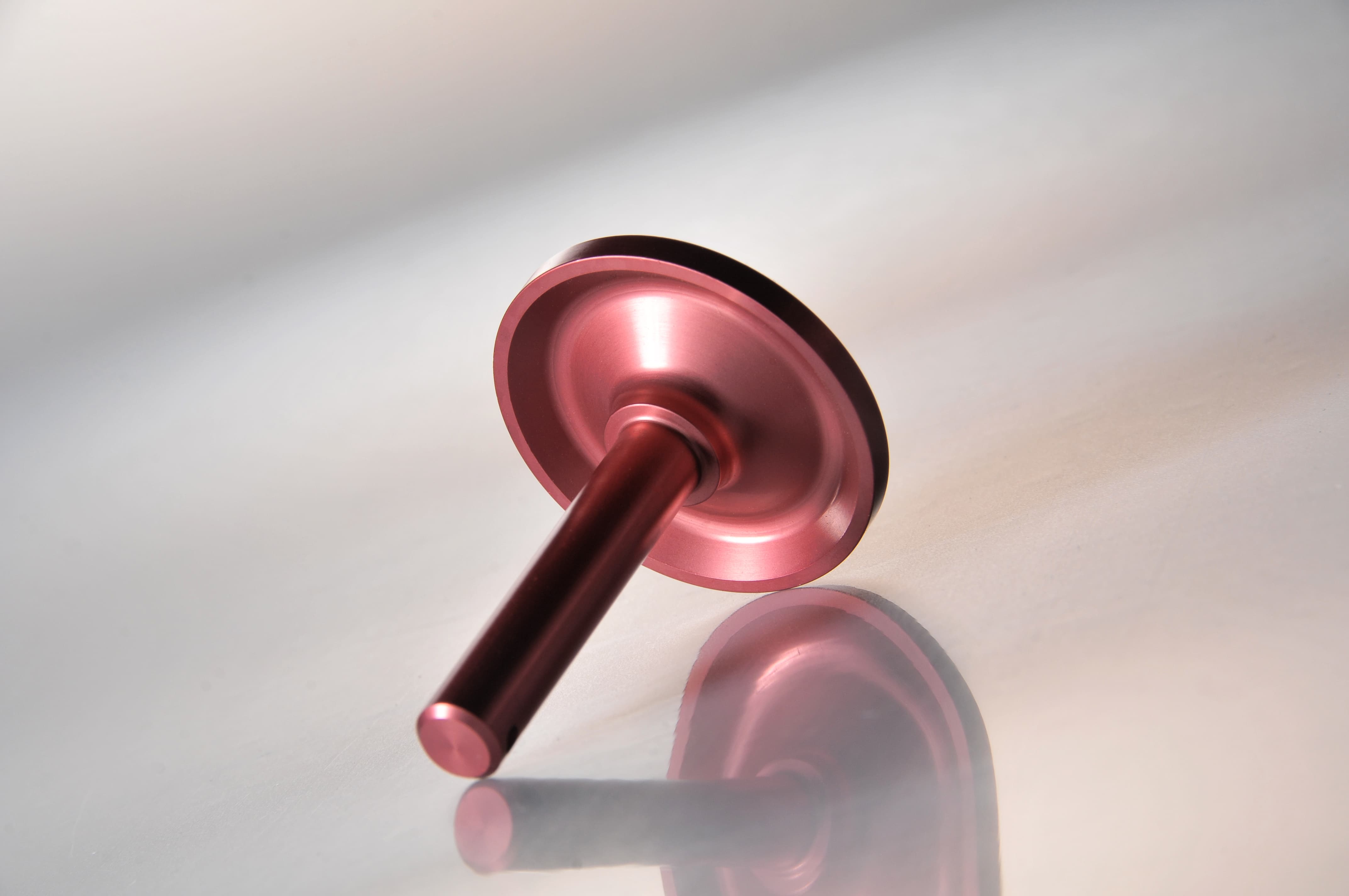

Finishing
Surface treatments co-ordinated through trusted local finishers — anodising, zinc, nickel, passivation, shot blasting. We manage the supply chain end-to-end.
- Treatments
- Anodising (clear/colour) · Zinc plating · Nickel · Passivation
- Mechanical
- Shot blasting · Bead blasting · Deburring
- Supply chain
- Managed end-to-end from GMT
- Certification
- Process certs available on request

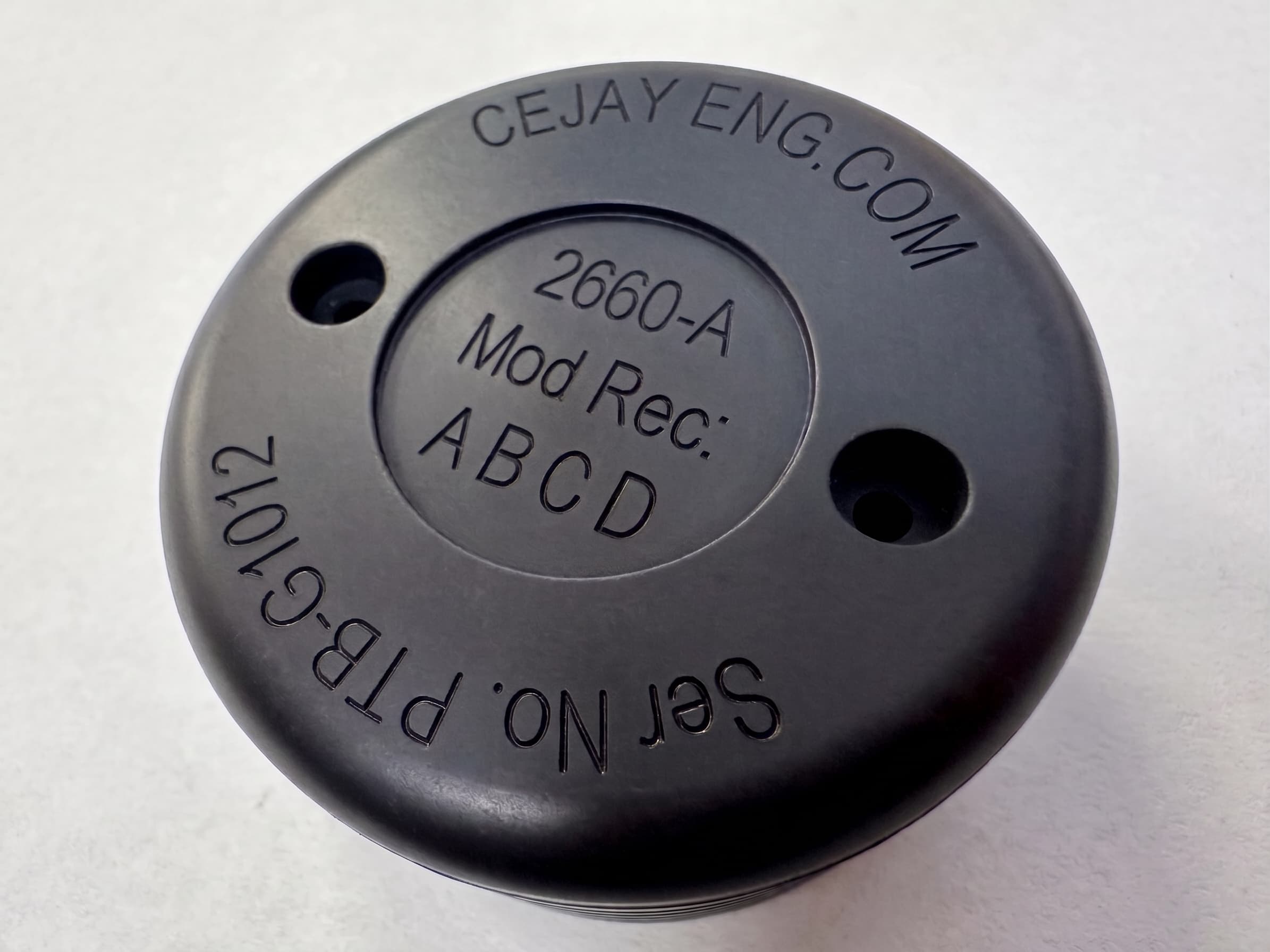

Part-Marking
Dot-peen and CNC engraving for part identification, serialisation and traceability — applied to customer specification.
- Methods
- Dot-peen · CNC engraving
- Content
- Serial numbers, part numbers, logos, QR codes, 2D data matrix
- Standards
- Bespoke customer schemes
- Materials
- Steel, aluminium, titanium, anodised surfaces
